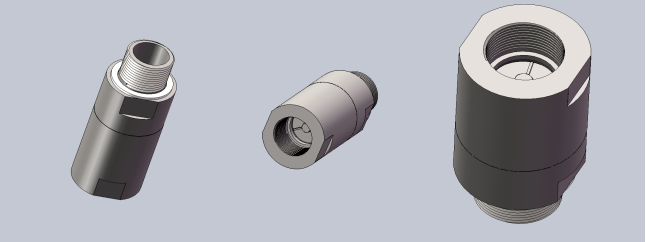

| ■ YSQ(R)-L-G1-ⅡC 管道阻爆燃双向阻火器 Pipeline deflagration bidirectional flame arrester |
||
| 产品特征 The main features | ||
| 型号 | YSQ(R)-L-G1-ⅡC | |
| 防爆等级 | IIC | |
| 规格 | 50*125mm | |
| 连接尺寸 | DN25 | |
| 连接方式 | 螺纹连接 | |
| 重量 | 1.5kg | |
| 优越性 superiority | ||
| 阻火性能卓越 | Excellent fire resistance | |
| 压力降小 | Small pressure drop | |
| 流量大 | Large flow | |
| 阻火芯易拆卸 | Firestop core is easy to disassemble | |
| 易于清洗维护 | Easy to clean and maintain | |
| 不易堵塞 | Not easy to block | |
| 安装方便双向结构 | Easy installation two-way structure | |
| 适配市场各种连接方式 | Adapt to various connection methods in the market | |
| 技术数据 Technical data | ||
| 规格 | G1 | |
| 公称压力 | PN16 | |
| 壳体 | 碳钢/304不锈钢/306L不锈钢/哈氏合金 | |
| 阻火芯 | 304不锈钢/316不锈钢/哈氏合金 | |
| 垫片 | 聚四氟乙烯/铅 | |
| 连接方式 | 螺纹 | |
